ARMY PROJECTILES
Type 1 - 37-mm High-Explosive Projectile

Type 94 A/TK

Type 1 A/TK

Over-all length of projectile

104 mm w/o fuze.

104 mm w/o fuze.

Length of complete round

250-mm fuzed.

333-mm fuzed.

Diameter at bourrelet

37 mm.

37 mm.

Width of rotating band

11 mm.

11 mm.

Weight of projectile: 1 pound 6 ounces without explosive.
Filling: Picric acid.
Weapons in which used:

Type 1 tank gun.

Type 1 antitank gun.

Type 94 antitank gun.

Color and markings: Black body, red nose tip, white body band.
Fuzing: Small Mk 1 base fuze.

Remarks: This projectile is constructed of high grade steel. It has no sharply difined bourrelet. It uses a small Mk 1 base fuze which also acts as a base plug.

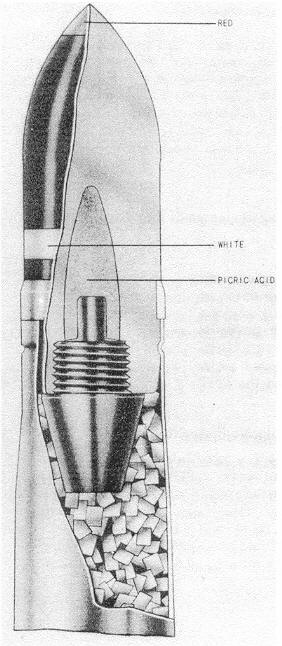

Figure 228 – Type 1 37-mm High-Explosive Projectile.
