| ARMY PROJECTILES |
| Type 94 - 37-mm High-Explosive Projectile |
Type
|
Type
|
Type
|
Type 1 A/
|
Type 11th
|
|
Over-all length of projectile |
125 mm
|
125 mm
|
125 mm
|
125 mm
|
125 mm
|
Lenght of complete round |
349 mm
|
266 mm
|
223 mm
|
349 mm
|
221 mm
|
Diameter at bourrelet |
37 mm |
37 mm |
37 mm |
37 mm |
37 mm |
Width of rotating band |
8 mm |
8 mm |
8 mm |
8 mm |
8 mm |
| Weight of projectile filled: 595.1 grams. |
| Filling: Picric acid and TNT. |
| Weapons in which used: All 37-mm guns. |
|
Color and markings: Black body, red nose band, yellow body band (some rounds may have white body band added). |
| Fuzing: Type 93 small instantaneous fuze. |
|
Remarks: This steel projectile is filled with TNT and picric acid. The after two-thirds of the projectile cavity is filled with high grade cast TNT. The forward one-third of the pro-jectile cavity is filled with picric acid. The entire bursting charge is enclosed in a heavy waxed paper casing with a double thickness between the TNT and picric acid charge. |
|

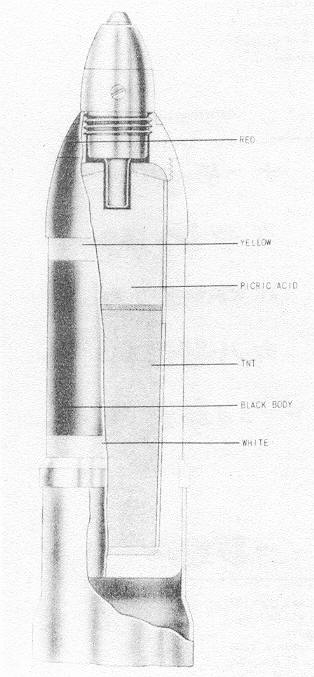

Figure 226 – 37-mm Type 94 High-Explosive Projectile. |
|
|
 |
