Japanese Explosive Ordnance – Army Ammunition – Navy Ammunition |
Chapter 4 – Section 1 |
ARMY PROJECTILES |
37-mm Ammunition |
There are eight 37-mm antitank and tank guns all sizes of which use the same projectiles but have different cartridge cases. Presented below is information on the cases and the propellant. |
Cases: |
Gun |
Diameter
|
Weight
|
Case
|
Markings |
Type 11th year infantry |
7.6 |
4 3/8 |
|
|
Type 94 tank |
1 27/32 |
9.4 |
5 1/4 |
|
Type 94 antitank* |
2 1/8 |
13.0 |
6 1/2 |
|
Type 98 tank* |
2 1/8 |
13.0 |
6 1/2 |
|
Type 100 tank* |
2 1/8 |
13.0 |
6 1/2 |
|
Type 97 antitank** |
2 |
15.1 |
9 7/8 |
|
Type 1 antitank** |
1 61/64 |
22.7 |
9 7/8 |
|
Type 1 tank |
1 61/64 |
22.7 |
9 7/8 |
|
* Since the type 94 antitank, type 98 tank, and type 100 tank guns use the same cart-ridge case, cases will be found marked for individual guns or for all three guns. |
** The cases for the type 97 and type 1 antitank guns can be distinguished by the fact that the type 97 is almost straight, whereas the type 1 has a pronounced neck. The type 1 tank and type 1 antitank guns use the same case. |
Propellant: |
Type 11th year infantery gun: 1.85 oz. of graphited smokeless powder in the form of fla-kes poured into the case and sealed with a cardboard closing disc. |
Type 94 tank gun: 2.7 oz. of praphited smokeless powder in the form of rectangular fla-kes. |
Type 94 antitank gun, type 98 gun, and type 100 tank gun: 4.3 ounces of graphited smokeless powder in the form of unitubular grains contained in a silk bag. |
Type 97 antitank gun: 5.0 ounces of graphited smokeless powder in the form of short, cylindrical grains contained in a silk bag. |

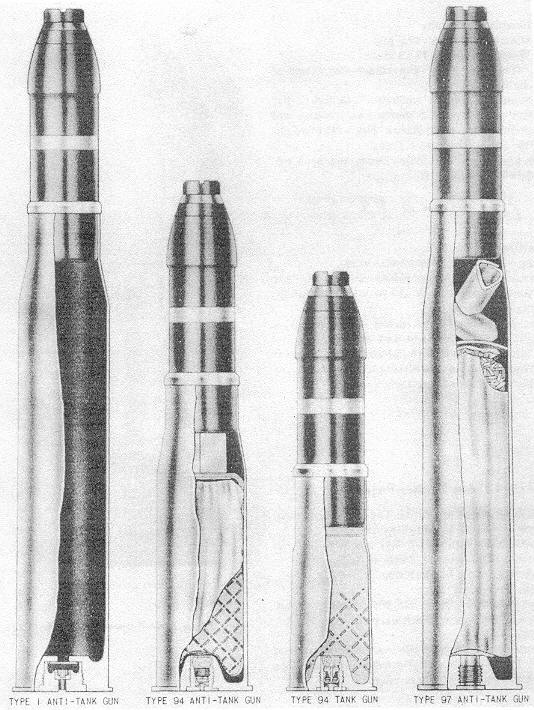

Figure 225 – 37-mm Ammunition. |
|
![]() ![]() ![]() ![]() ![]() |
