Chapter 4 – Section 1 |
ARMY PROJECTILES |
20-mm High Explosive Incendiary Projectile |
Over-all length: 7 19/32 inches. |
Length of case: 4 7/8 inches. |
Length of projectile: 3 5/16 inches. |
Weight of projectile: 4.48 ounces. |
Filling: Cyclonite, incendiary composition. |
Fuzing: Type 93 small instantaneous fuze. |
Color and markings: Black body with red band just abaft bourrelet, yellow band forward of rotating band. The characters |
|
(fixed or flexible machine cannon) |
are stenciled down the body. |
Weapons in which used: Ho-1 (flexible) and Ho-3 (fixed) aircraft cannon. |
Remarks: The projectile is made of steel. It contains two pellets, the forward one, sur-rounding the fuze gaine, is cyclonite while the after pellet is an incendiary mixture. |

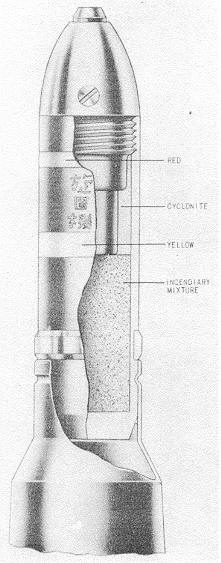

Figure 212 – 20-mm High-Explosive Incendiary Projectile. |
|
![]() ![]() ![]() ![]() ![]() |
