| Type JG - Antiboat Mine |
| Method of actuation: Chemical horn. |
| Weight of explosive: 22 pounds. |
| Type of explosive: HND/TNT 40/60 (type 98). |
| Diameter of top opening: 5.1 inches. |
| Diameter of top: 7 inches. |
| Mine No. | Diameter of base (inches) | Height (inches) |
Total weight (pounds) |
|
| 1 | 14 5/16 | 10 1/4 | 57 | |
| 2 | 14 9/16 | 10 5/16 | 55 | |
| 3 | 14 9/16 | 10 5/16 | 62.5 | |
| 4 | 14 5/16 | 10 1/4 | 57 | |
| 5 | 14 5/16 | 10 1/4 | 52.5 |
|
Description: There are five modifications of the subject mine, each of them being ac-tuated by a single chemical horn screwed into the top. The mines are either bell-shaped or of truncated cone shape with an additional distinguishing factor being the location of the welds. The firing mechanism is similar to the J-XIII; however, a very small detonator is used to initiate the explosive train. |
|
Employment: Used as an antiboat mine for the protection of beaches and reefs; also on land as A/T mine by camouflaging. |
|
Operation: The mine is laid with the chemical horn installed and a safety pin through the spring-loaded arming spindle. When positioned properly, the safety pin is removed allow-ing the spindle to move down and bridge the contacts of the safety switch. |
|
The mine is fired when the chemical horn is crushed or broken. |
|
Remarks: The Japanese designation for this mine is: Small type mine Model 2. |
|

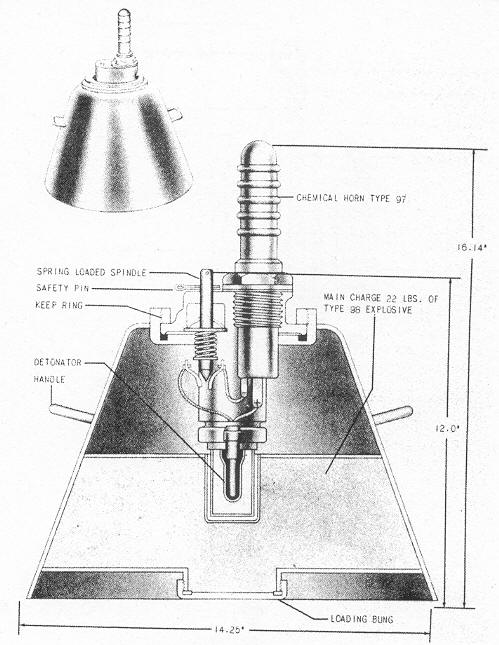

Figure 168 – Type JG Antiboat Mine. |
|
|
 |
