| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 2 – Section 2 |
| Army Gaines |
| Type 2 - Small Model Bomb Gaine Model 1 |
| Japanese designation: Type 2 small model bomb. Bomb gaine Model 1. |
| Delay: Instantaneous. |
| Color: Tip not colored. |
| Dimensions: Length, 3 inches; depth, 13/16 inch. |
|
Explosive train: Mercury fulminate cap over tetryl in upper plug. Picric acid booster. |
|

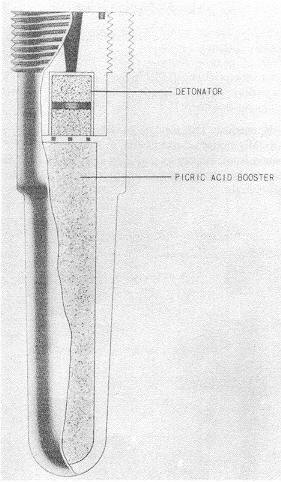

Figure 149 – Type 2 Small Model Bomb Gaine Model 1. |
|
|
 |
