| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 2 – Section 2 |
| Army Gaines |
| Type 0 Mk 5 - Bomb Gaine |
| Japanese designation: Type 0 Mk 5 bomb gaine. |
| Delay: 0.2 second. |
| Color: Tip not colored. |
| Dimensions: Length, 6 1/2 inches; depth, 1 3/4 inches. |
|
Explosive train: Primer composition in upper plug. Black powder delay over flash powder relay in middle of plug. Lead azide detonator over tetryl pellet in lower plug. Picric acid sub-booster in cup. Picric acid booster. |
|

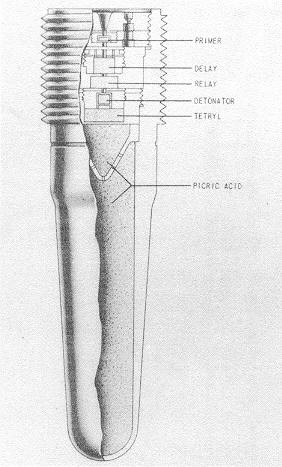

Figure 147 – Type 0 Mk 5 Bomb Gaine. |
|
|
 |
