| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 2 – Section 2 |
| Army Gaines |
| Type 4 - Gaine for Skipping Bomb |
| Japanese designation: Type 4 gaine for skipping bomb. |
| Delay: 10 to 11 seconds. |
| Color: Tip not colored. |
| Dimensions: Length, 4 1/2 inches; Depth, 1 3/8 inches. |
|
Explosive train: Primer composition in upper plug. Circular black powder delay train and relay in middle plug. Primer composition over lead azide detonator over tetryl pellet in lo-wer plug. Picric acid booster. |
|

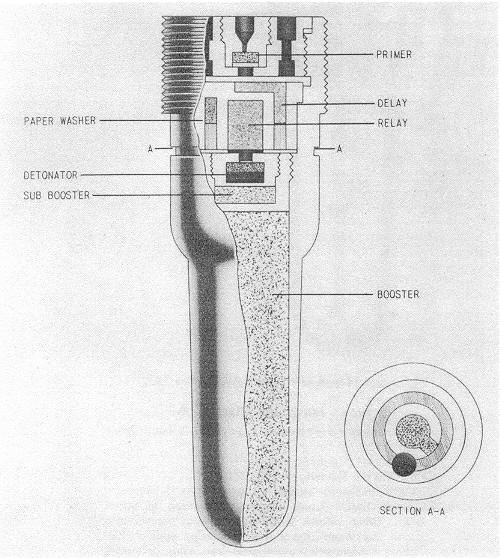

Figure 145 – Type 4 Gaine for Skipping Bomb. |
|
|
 |
