| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 2 – Section 2 |
| Army Gaines |
| Type 96 - Land Bomb Gaine |
| Japanese designation: Type 96 land bomb gaine. |
| Delay: Instantaneous. |
| Color: Tip not colored. |
| Dimensions: Length, 4 1/2 inches; Depth, 1 3/8 inches. |
|
Explosive train: Primer composition over flask powder in upper plug. No delay plug pre-sent. Lead azide detonator over tetryl in lower plug. Picric acid booster. |
|

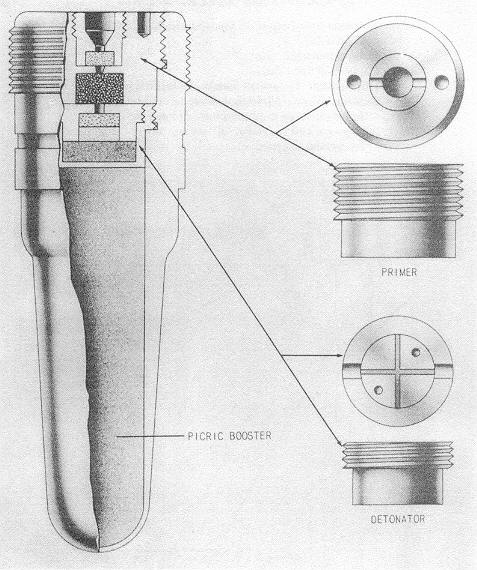

Figure 144 – Type 96 Land Bomb Gaine. |
|
|
 |
