| Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
| Chapter 2 – Section 2 |
| Army Gaines |
| Type 92 - Land Bomb Gaine Modification 2 |
| Japanese designation: Type 92 land bomb gaine Modification 2. |
| Delay: Instantaneous. |
| Color: Tip not colored. |
| Dimensions: Lenght, 4 1/2 inches; Depth, 1 3/8 inches. |
|
Explosive train: Mercury fulminate over tetryl in an inverted copper cup in upper plug. No delay plug present. Tetryl pellet in lower plug. Picric acid booster. |
|

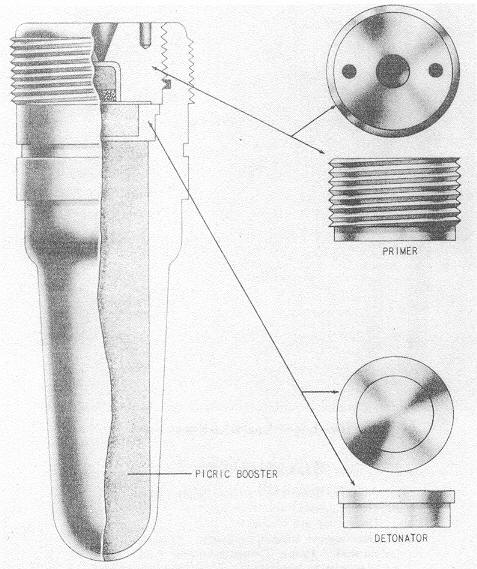

Figure 143 – Type 92 Land Bomb Gaine Modification 2. |
|
|
 |
