Fuzes: None.

Over-all length: 43 inches.

Lenght of body: 37 inches (including nose piece).

Diameter of body: Maximum, 7 1/8 inches; Minimum, 4 11/16 inches.

Thickness of wall: 1/16 inch.

Material of wall: Corrugated sheet steel.

Type of suspension: Horizontal.

Suspension lug: Normal Army type suspension lug.

Color and marking: Black over all.

Length of tail: 6 inches.

Width of tail: 7 1/8 inches.

Width of tail fins: None.

Dimensions of tail struts: None.

Material of tail: Sheet steel.

Type of filling: 30 type 2 40-mm 1/2-kg. bombs.

Weight of filling: 22 pounds.

Total weight of bomb: 39 pounds.

Charge/weight ratio: 56 percent.

Construction: The container is formed by three inerlocking lengths of corrugated sheet steel. Each end is closed by a hollow cone made of sheet steel. The three interlocking lengths are held in position by two sheet steel bands and buckles. The buckles are pre-vented from opening by two arming wires.

Attached to the tail piece are three manila cords 13 inches long. To each of these is at-tached a steel hook which fits into a hole in each of the three body sections.

One of the three interlocking corrugated lengths serves as the top of the bomb. Spot welded to this is a smooth semicircular sheet steel piece 25 1/2 inches long. The Army type suspension lug is attached to this piece. Eye-bolts are welded on either side of the lug to serve as guides for the arming wires.

Operation: When the container is released from the plane, the armin wire is withdrawn. The buckles open and the steel band fall away. The three section of the body separate allowing the bombs to fall free.

Remarks: Fitted around the container there may be a safety device consisting of a can-vas strap, a black powder burster charge in a small container, and a friction igniter with a 2-second delay. The igniter cord is attached to the arming wire and as the container leaves the plane the delay train is ignited. After 2 seconds, the strap is blown apart and the sections of the container fall free.

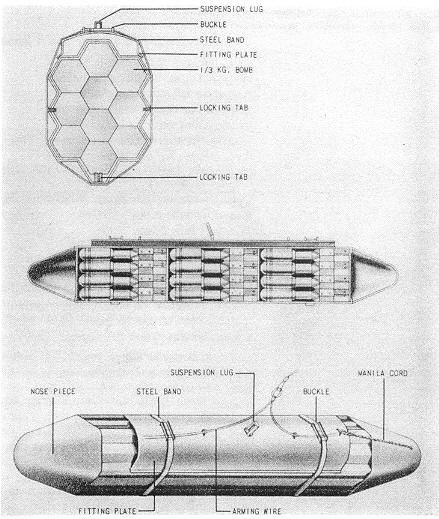

Figure 28 - Container for 30 Type 2 1/3-kg. Bombs.
