Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
Chapter 1 – Section 1 |
Japanese Army Bombs |
Type 97 15-kg. Concrete Bomb |
Over-all length: 26 inches. |
Length of body: 17 3/4 inches. |
Diameter of body: 4 inches. |
Thickness of wall: 1 /32 inch. |
Material of wall: Sheet steel. |
Type of suspension: Horizontal or vertical. |
Suspension lug: A typical Army suspension lug attached to a steel band around the body. Another suspension lug is fastened to a pipe which is part of the tail assembly. |
Color and markings: Black over all. Red stripe on nose. Yellow stripe and white stripe for-ward of suspension lug. |
Length of tail: 8 1/4 inches. |
Width of tail: 5 1/2 inches. |
Width of tail fins: 2 1/4 inches. |
Dimsension of tail struts: Length, 3 3/4 inches; width, 1/2 inch; thickness, 1/16 inch. |
Material of tail: Sheet steel. |
Type of filling: Cast picric in a central exploder tube surrounded by steel pellets set in concrete. |
Weight of filling: Picric acid, 3 pounds. |
Total weight of bomb: 32 pounds. |
Construction of body: The body is constrcuted of a light sheet steel cylinder which surrounds a steel central burster tube. The space between the tube and the outercast-ing is filled with steel pellets set in concrete. The nose of the bomb is slightly tapered. A steel adapter ring is welded to the end of the nosepiece. It is threaded internally to re-ceive another ring which contains the nose fuze pocket. The central burster tube is an explosive filled 1/8 inch steel cylinder, 2 3/8 inches in diameter and 16 1/2 inches long. A base plug is inserted into the after end of the central tube and held in place by a friction fit. |
Construction of tail: A steel pipe 7/8 inch in diameter and 9 inches long is welded to the base plug. Four tail fins are welded to the pipe and to the base plug. The tail fins are braced by a single set of box-type struts. A hinged lug for vertical suspension is atta-ched to the after part of the steel pipe. |

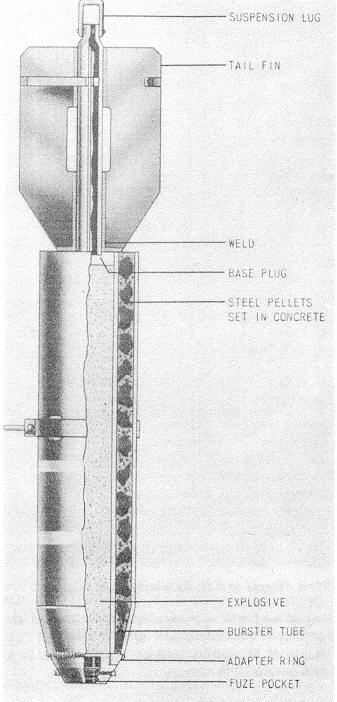

Figure 21 - Type 97 15-kg. Concrete Bomb. |
|
