Japanese Explosive Ordnance – Bombs, Bomb Fuzes, Land Mines,
Grenades, Firing Devices and Sabotage Devices |
Chapter 1 – Section 1 |
Japanese Army Bombs |
Type 97 50-kg. Incendiary Bomb |
Over-all length: 45 inches. |
Length of body: 1/2 inch. |
Diameter of body: 7 1/2 inches. |
Thickness of wall: 3/16 inch. |
Material of wall: Steel. |
Type of suspension: Horizontal. |
Suspension lug: Normal Army suspension lug. |
Color and markings: Gray over all. A yellow and white band are stenciled just forward of the suspension lug. There is a red band around the nose. |
Length of tail: 18 1/2 inches. |
Width of tail: 9 3/16 inches. |
Material of tail: Sheet steel. |
Dimension of tail struts: Length, 6 3/4 inches; diameter, 5/16 inch. |
Type of filling: 400-450 rubber bungs (1 inch long by 1 inch diameter) impregnated with phosphorus dissolved in carbon disulphide. The high-explosive charge in the nose and central burster tube is picric acid. |
Weight of filling: Incendiary filling, 37 pounds; picric acid, 5.5 pounds. |
Total weight of bomb: 110 pounds. |
Charge/weight ratio: 39 percent. |
Construction of body: A steel nosepiece is held by three grub screws to a steel sealing plate. The plate is welded to a tubular-steel body by a continous circumferential weld. A burster tube threads into the sealing plate and the joint is made airtight by a lead was-her. A tail cone is welded to the after end of the body. |
Construction of tail: Four steel fins are welded to the tail cone and are braced by two sets of tubular struts. |
Remarks: This bomb was originally designed to contain gas. |

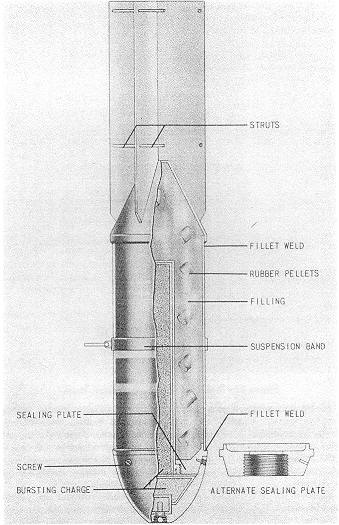

Figure 14 - Type 97 50-kg. Incendiary Bomb. |
|
