| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROEJCTILE FOR 105-MM HOWITZER |
| GERMAN NOMENCLATURE: F.H.Gr.Stg. m.R. 11. (See fig. 550.) |
| WEAPONS: |
|
German Light Field Howitzers: |
|
l.F.H. 18. |
|
l.F.H. 18/1. |
|
l.F.H. 18/2. |
|
l.F.H. 18 m. M. |
|
l.F.H. 18/39. |
|
l.F.H. 18/49. |
| PROJECTILE: |
|
Caliber: 105 mm. |
|
Kind: Shell |
|
Type: H.E. |
|
Weight: 35 pounds (loaded and fuzed). |
|
Color: Red Body, O.D. ogive. |
| CHARGE: |
|
Number: 14. |
|
Weight: 3 pounds. |
|
Kind: TNT poured. |
| TRACER: None. |
| BOOSTER: gr.Zdlg. C/98 Nitropenta. |
| FUZE: |
|
Nomenclature: A.Z. 23 v. (0.25). |
|
Type: P.D. |
| REMARKS: |
| Note 1. – KPS rotating band. |
| Note 2. – R-11 smoke box. |
|

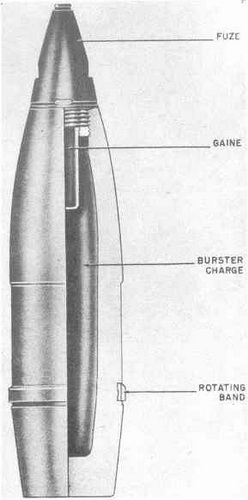

Figure 550 – H.E. Projectile for 105-mm Howitzer |
|
|
 |
