| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 280-MM RAILWAY GUN |
| GERMAN NOMENCLATURE: 28-cm Gr. 39 m. Hbgr.Z. (See fig. 539.) |
| WEAPONS: German Railway Gun: Bruno N.K. (E). |
| PROJECTILE: |
|
Caliber: 280 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 585 pounds (loaded and fuzed). |
|
Color: O.D. |
| CHARGE: |
|
Number: 30. |
|
Weight: Approximately 93 pounds. |
|
Kind: TNT and TNT/Wax (95/5) pressed in blocks in cardboard container. |
| TRACER: None. |
| BOOSTER: Np. 10. |
| FUZE: |
|
Nomenlcature: Hbgr.Z. 35 K. |
|
Type: P.D. |
|

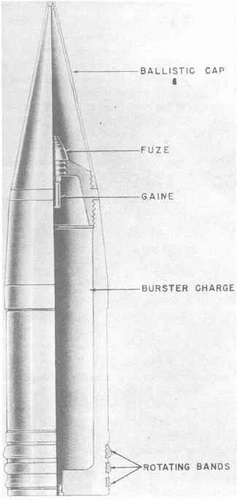

Figure 539 – H.E. Projectile for 280-mm Railway Gun, 28-cm Gr. 39 m. Hbgr.Z. |
|
|
 |
