| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE, TYPE 39, WITH BALLISTIC CAP, 170-MM |
| GERMAN NOMENCLATURE: 17-cm K.Gr. 38 (Hb) (Kanonengrante 38 [Haube]). (See fig. 524.) |
| EMPLOYMENT: 17-cm K. i. Mrs.Laf. (Kanone in Mörserlafette) Gun in Mortar Mounting. |
| COMPLETE ROUND: |
|
54.662 inches, over-all length. |
| PROJECTILE, painted green: |
|
30.983 inches, over-all length w/o fuze. |
|
4.921 inches, distance form base to band. |
|
1.023 inches, width of rotating bands. |
|
Two, number of rotating bands. |
|
Bimetallic, composition of rotating bands. |
|
6.967 inches, diameter of bourrelet. |
|
5.984 inches, diameter of base. |
|
138.0 pounds, total weight. |
|
15.37 pounds, weight of bursting charge. |
|
TNT in cardbord container cemented in projectile, type of bursting charge. |
|
Smoke box present. |
|
Zdlg. 36 booster. |
| CARTRIDGE CASE (German nomenclature 6324 [semi-fixded]): |
|
28.56 inches, over-all length. |
|
7.5 inches, diameter at mouth. |
|
No shoulder. |
|
8.5 inches, diameter at base. |
|
Tubular Diglycol, type of propellant. |
|
C/12 n.A. primer. |
| FUZE: Nose Percussion Fuze Hbgr.Z. 35 K or |
|
Time and Percussion Fuze Dopp.Z. S/90 s. |
| PACKAGING: One projectile to wicker basket. |
|
145.2 pounds. |
|
REMARKS: Fuze is under ballistic cap. Projectile has streamlined base. After firing, rota-ting band will bear 48 engravings. |
|

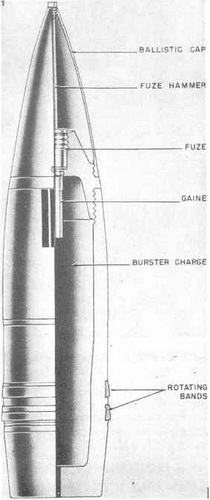

Figure 524 – H.E. Projectile, Type 38, 170-mm, 17-cm K.Gr. 38 (Hb) |
|
|
 |
