| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 150-MM HOWITZER |
| GERMAN NOMENCLATURE: 15-cm Gr. M 25 (t).
(See fig. 488.) [15-cm Dopp.Z.Gr. 25 (t)] |
| WEAPONS: Czech Heavy Field Howitzer: s.F.H. 25 (t) Model 25. |
| PROJECTILE: |
|
Caliber: 150-mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 94 pounds (loaded and fuzed). |
|
Color: Machined metal with red markings. |
| CHARGE: |
|
Number: TTR. |
|
Weight: 9 pounds. |
|
Kind: Pressed TNT in cardboard container. |
| TRACER: None. |
| BOOSTER: Integral with fuze, auxiliary booster tube in shell body. |
| FUZE: |
|
Nomenclature: Dopp.Z. 25 (t). |
|
Type: T. and P. |
| REMARKS: |
|
Note 1. – Red band around body of projectile at the ogive indicates T. and P. fuze. |
|

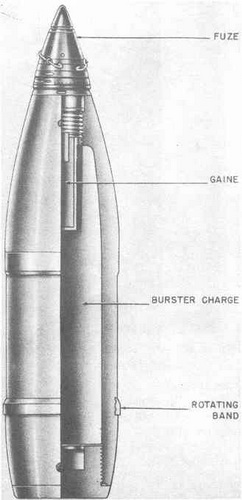

Figure 488 – H.E. Projectile for 150-mm Howitzer, 15-cm Gr. M. 25 (t) |
|
|
 |
