| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 105-MM GUN |

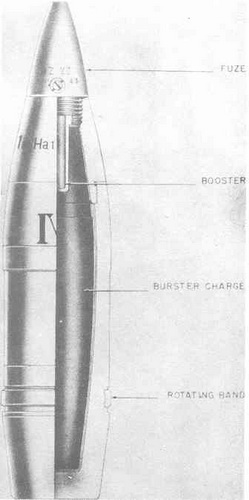

| GERMAN NOMENCLATURE: F.H.Gr. rot. (See fig. 450.) |
| WEAPONS: |
|
German Gun: |
|
10-cm K 17/04 n.A. |
|
10-cm K 17. |
| PROJECTILE: |
|
Caliber: 105 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 33.07 pounds (loaded and fuzed). |
|
Color: O.D. with red band at rotating band. |
| CHARGE: |
|
Number: 1a. |
|
Weight: 3 pounds. |
|
Kind: TNT pressed in blocks in cardboard container. |
| TRACER: None. |
| BOOSTER: wlf Np. 10. |
| FUZE: |
|
Nomenclature: A.Z. 23 v. (0,25), (0,15); Dopp.Z. S/60 s. |
|
Type: P.D. or. T. and P. |
| REMARKS: |
|
Note 1. – Red band around the projectile at rotating band indicates high velocity round. |
|
 |
