GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES
CHAPTER 5
GERMAN PROJECTILES
H.E. PROJECTILE FOR 100-MM HOWITZER
GERMAN NOMENCLATURE: 10-cm Stggr. (p). (See fig. 447.)
WEAPONS:

Czech Light Field Howitzer: 10-cm le.F.H. 14/19 (t), Model 14/19.

Polish Light Field Howitzer: 10-cm le.F.H. 14/19 (p), Model 14/19.

Jugoslav Light Field Howitzer: 10-cm le.F.H. 316 (j), Model 14/19 (Skoda).

Jugoslav Light Field Howitzer: 10-cm le.F.H. 317 (t), Model 28 (Skoda).
PROJECTILE:

Caliber: 100 mm.

Kind: Shell

Type: H.E.

Weight: 32 pounds (loaded and fuzed).
COLOR: Yellow.
CHARGE:

Number: Tt.

Weight: 5 pounds

Kind: TNT (?).
TRACER: None.
BOOSTER: Integral with fuze.
FUZE:

Nomenclature:

(1) A.Z. 24/31 RYG M18.

(2) A.Z. 24/31 M 99/15 B.Z.

(3) A.Z. 24/31 M 99/15 K.Z.

(4) A.Z. 24/31 M 99/15 D.Z.

(5) Dopp.Z. 24/31 AM 18.

(6) Dopp.Z. 24/31 LDM 31.

Type:

(1) P.D.

(2) P.D.

(3) P.D.

(4) P.D.

(5) T. and P.

(6) T. and P.
REMARKS:
Note 1. – The marking "Tt" for shell charge is believed to denote TNT.

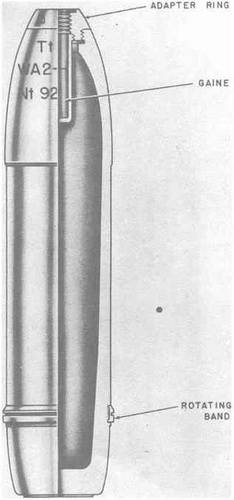

Figure 447 – H.E. Projectile for 100-mm Howitzer, 10-cm Stggr. (p)
