GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES
CHAPTER 5
GERMAN PROJECTILES
H.E. PROJECTILE FOR 100-MM HOWITZER
GERMAN NOMENCLATURE: 10-cm Dopp.Z.Gr. 30 (t). (See fig. 445.)
WEAPONS:

Czech Light Field Howitzer: 10-cm le.F.H. 14/19 (t), Model 14/19.

Polish Light Field Howitzer: 10-cm le.F.H. 14/19 (p), Model 14/19.

Jugoslav Light Field Howitzer: 10-cm le.F.H. 316 (j), Model 14/19 (Skoda).

Jugoslav Light Field Howitzer: 10-cm le.F.H. 317 (t), Model 28 (Skoda).

Czech Light Field Howitzer: 10-cm le.F.H. 30 (t), Model 30.
PROJECTILE:

Caliber: 100 mm.

Kind: Shell.

Type: H.E.

Weight: 35.3 pounds (loaded and fuzed).

Color: O.D. or machined metal with red markings.
CHARGE:

Number: 14.

Weight: 3.5 pounds.

Kind: TNT poured.
TRACER: None.
BOOSTER: Integral with fuze.
FUZE:

Nomenclature: Dopp.Z. VG–SKR (t); Dopp.Z. VG–CR (t).

Type: T.and P.; T. and P.
REMARKS:
Note 1. – Red band on projectile indicates T. and P. fuze.

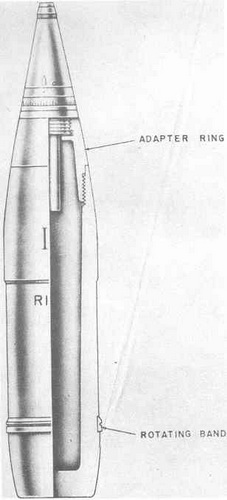

Figure 445 – H.E. Projectile for 100-mm Howitzer, 10-cm Dopp.Z.Gr. 30 (t)
