GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES
CHAPTER 5
GERMAN PROJECTILES
H.E. PROJECTILE FOR 100-MM HOWITZER
GERMAN NOMENCLATURE: 10-cm Sprgr. (Dopp.Z.) 311 (j). (See fig. 443.)
WEAPONS:

Jugoslav Light Field Howitzer: 10-cm le.F.H. 317/1 (j), Model 28 (Skoda).

Jugoslav Mountain Howitzer: 10-cm Geb.H. 317/2 (j), Model 28 (Skoda).

Czech Light Field Howitzer: 10-cm le.F.H. 14/19 (t), Model 14/19.

Polish Light Field Howitzer: 10-cm le.F.H. 14/19 (p), Model 14/19.

Jugoslav Light Field Howitzer: 10-cm le.F.H. 316 (t), Model 14/19 (Skoda).
PROJECTILE:

Caliber: 100 mm.

Kind: Shell.

Type: H.E.

Weight: 36.75 pounds (loaded and fuzed).

Color: Yellow – unpainted on the boat tail and bourrelet.
CHARGE:

Number: T.

Weight: 3.50 pounds.

Kind: TNT (?).
TRACER: None.
BOOSTER: Integral with fuze.
FUZE:

Nomenclature: Dopp.Z. VG–SKR (t); Dopp.Z. VC–CR (t).

Type: T. and P.; T. and P.

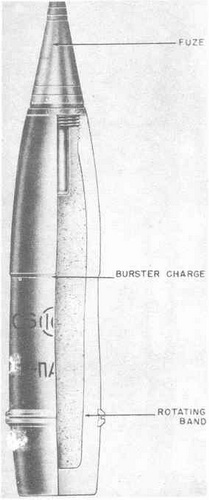

Figure 443 – H.E. Projectile for 100-mm Howitzer, 10-cm Sprgr. (Dopp.Z.) 311 (j)
