| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 100-MM HOWITZER |
| GERMAN NOMENCLATURE: 10-cm Dopp.Z.Gr. M 21 (t) or 10-cm Dopp.Z.Gr. 21 (t). (See fig 442.) |
| WEAPONS: |
|
Czech Light Field Howitzer: 10-cm le.F.H. 14/19 (t), Model 14/19. |
|
Polish Light Field Howitzer: 10-cm le.F.H. 14/19 (p), Model 14/19. |
|
Jugoslav Light Field Howitzer: 10-cm le.F.H. 316 (j), Model 14/19 (Skoda). |
|
Jugoslav Light Field Howitzer: 10-cm le.F.H. 317 (j), Model 28 (Skoda). |
| PROJECTILE: |
|
Caliber: 100 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 35.3 pounds (loaded and fuzed). |
|
Color: Machined metal with red markings. |
| CHARGE: |
|
Number: TTR. |
|
Weight: 3.5 pounds |
|
Kind: TNT pressed. |
| TRACER: None. |
| BOOSTER: Integral with fuze. |
| FUZE: |
|
Nomenclature: Dopp.Z. 21 (t). |
|
Type: T. and P. |
| REMARKS: |
|
Note 1. – Red band around body of projectile at ogive indicates T. and P. fuze. |
|
Note 2. – This round may also be fired from the 10-cm Geb.H. M 16/19 (t) which a Czech mountain Howitzer. |

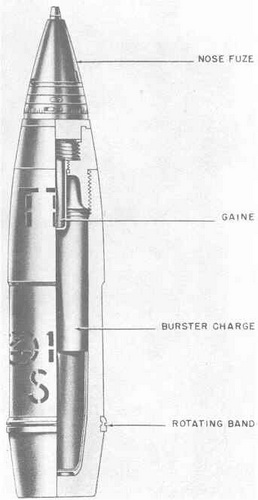

Figure 442 – H.E. Projectile for 100-mm Howitzer, 10-cm Dopp.Z.Gr. M 21 (t) |
|
 |
