| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| ARMOR PIERCING PROJECTILE FOR 88-MM GUN |
| GERMAN NOMENCLATURE: 8.8-cm Pzgr. (See fig. 436.) |
| WEAPONS: |
|
German A.A. Guns: 8.8-cm Flak 18, 36, 37. |
|
German A.A. Gun (Modified Russian): 8.5/8.8-cm Flak 39 (r). |
| PROJECTILE: |
|
Caliber: 88 mm. |
|
Kind: Projectile. |
|
Type: Amor-piercing. |
|
Weight: 21 pounds (loaded and fuzed). |
|
Color: Black with red markings. |
| CHARGE: |
|
Number: 28. |
|
Weight: 1/3 pound (approximately). |
|
Kind: TNT/WAX (90/10) and PETN/WAX (90/10) pressed in blocks in aluminum contai-ner. |
| TRACER: Yes, but no number. |
| BOOSTER: Integral with charge. |
| FUZE: |
|
Nomenclature: Bd.Z. f. 8.8-cm Pzgr. |
|
Type: P.D. |

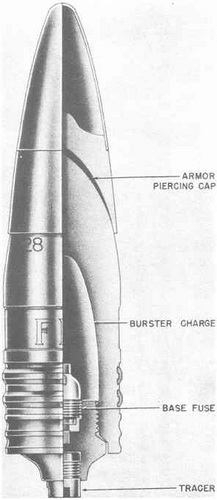

Figure 436 – Armor Piercing Projectile for 88-mm Gun, 8.8-cm Pzgr. |
|
 |
