| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| HIGH EXPLOSIVE PROJECTILE FOR 88-MM A.A. GUNS |
|
GERMAN NOMENCLATURE: 8.8-cm Sprgr. L/4.5 Zt.Z. (Controlled Fragmentation). (See fig. 435.) |
| WEAPONS: |
|
German Tank Gun: 8.8-cm Kw.K. 36 (L/56). |
|
German A.A. Gun (Modified Russian): 8.5/8.8-cm Flak 39 (r). |
|
German A.A. Guns 8.8-cm Flak 18, 36, 37. |
| PROJECTILE: |
|
Caliber: 88 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight (loaded and fuzed): 21 pounds. |
|
Color: Yellow. |
| CHARGE: |
|
Number: 13. |
|
Weight: 2 pounds. |
|
Kind: Amatol 60/40 poured. |
| TRACER: None. |
| BOOSTER: gr.Zdlg. C/98 Np. |
| FUZE: |
|
Nomenclature: Zt.Z. S/30. |
|
Type: Time. |
| REMARKS: |
|
Note 1. – Shell has a circumferential groove just to rear of bourrelet, and 15 longitudinal grooves, equally spaced, extending from rotating band to just forward of bourrelet. Assu-med purpose of grooves is to control fragmentation. Grooves may vary slightly between different shells. |
|
Note 2. – Rotating bands for this shell may be KPS or soft steel (FES), with two different contours. |

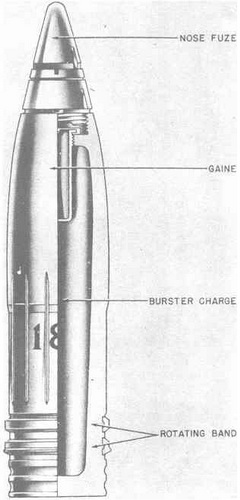

Figure 435 – High Explosive
Projectile for 88-mm
A.A. Guns, |
|
 |
