| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| A.P. PROJECTILE WITH TUNGSTEN CARBIDE CORE (TYPE 40), 88-MM |
| GERMAN NOMENCLATURE: 8.8-cm Pzgr. 40 (Panzergranate 40). (See fig. 427.) |
| EMPLOYMENT: |
|
8.8-cm Flak 36 (Flugabwehrkanone 36), Antiaircraft Gun 36. |
|
8.8-cm Flak 41 (Flugabwehrkanone 41), Antiaircraft Gun 41. |
| COMPLETE ROUND: Description of c/r is for Flak 36. |
|
33.99 inches, over-all length. |
| PROJECTILE, painted black: |
|
12.75 inches, over-all length. |
|
1.166 inches, distance from base to band. |
|
0.437 inch, width of rotating bands. |
|
Two, number of rotating bands. |
|
3.437 inches, diameter of bourrelet. |
|
3.562 inches, diameter of base. |
|
5.437 inches, length of tungsten carbide core. |
|
1.406 inches, diameter of core. |
|
4.25 pounds, weight of core. |
|
16.0 pounds, total weight. |
|
Tracer is present in base of projectile. |
| CARTRIDGE CASE (German nomenclature, 6347 (fixed)): |
|
22.4 inches, over-all length. |
|
3.625 inches, diameter of neck. |
|
3.812 inches, diameter of shoulder. |
|
4.02 inches, diameter of base. |
|
11.625 pounds, weight of case. |
|
Diglycol, type of propellant. |
|
C/22 electric primer. |
| FUZE: No fuze is employed. |
| REMARKS: The cartridge case employed for Flak 41 is "8.8-cm Flak 41" (fixed). |

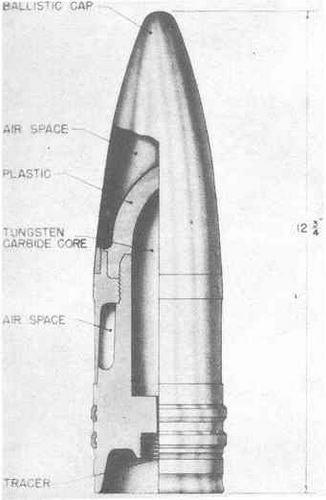

Figure 427 – A.P. Projectile
with Tungsten Carbide |
|
 |
