| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 7.65-CM GUN |
| GERMAN NOMENCLATURE: 7.65-cm Zt.Z.Gr. M 19 (t). (See fig. 419.) |
| WEAPONS: |
|
Czech Field Gun: 7.65-cm F.K. 5/8 (t), Model 5/8. |
|
Austrian Field Gun: 7.65-cm F.K. 5/8 (ö), Model 5/8. |
|
Austrian Field Gun: 7.65-cm F.K. 17 (ö), Model 17. |
|
Czech Field Gun: 7.65-cm F.K. 17 (t), Model 17. |
|
Jugoslav Field Gun: 7.65-cm F.K. 300 (j), Model 5/8 (Skoda). |
|
Jugoslav Field Gun: 7.65-cm F.K. 303 (j), Model 17 (Skoda). |
| PROJECTILE: |
|
Caliber: 76.5 mm. |
|
Kind: Projectile. |
|
Type: H.E. |
|
Weight (loaded and fuzes): 19 pounds. |
|
Color: Unpainted with red and black markings and red band around body. |
| CHARGE: |
|
Number: TP. |
|
Weight: 2½ pounds. |
|
Kind: Cast TNT. |
| TRACER: None. |
| BOOSTER: Integral with fuze – without bore safety device. |
| FUZE: |
|
Nomenclature: VZ 19. |
|
Type: Time (powder train). |
| REMARKS: Very slight, if any, bourrelet. |

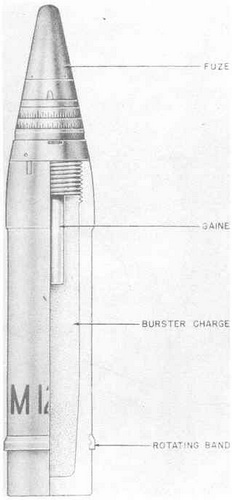

Figure 419 – H.E. Projectile for 7.65-cm Gun, 7.65-cm Zt.Z.Gr. M 19 (t) |
|
 |
