| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| HIGH EXPLOSIVE PROJECTILE FOR 76.5-MM FIELD GUN |
| GERMAN NOMENCLATURE: 7.65-cm Sprgr. (Dopp.Z.) 276 (j). (See fig. 416.) |
| WEAPONS: |
|
Jugoslav Field Gun: 7.65-cm F.K. 404 (j), Model 28 Skoda. |
| PROJECTLIE: |
|
Caliber: 76.5 mm. |
|
Kind: Projectile. |
|
Type: H.E. |
|
Weight (loaded and fuzed): 18 pounds. |
|
Color: Yellow. |
| CHARGE: |
|
Number: TTT. |
|
Weight: 1½ pounds. |
|
Kind: TNT. |
| TRACER: None. |
| BOOSTER: Integral with fuze. |
| FUZE: |
|
Nomenclature: Dopp.Z. VG–SKR (t); Dopp.Z. VG–CR (t). |
|
Type: T. and P.; T. and P. |

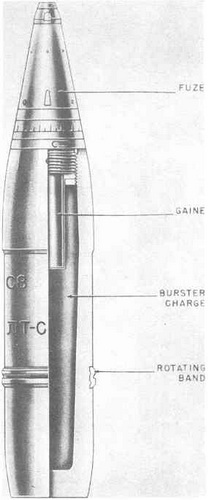

Figure 416 – H.E. Projectile
for Field Gun, 76.5-mm, |
|
 |
