| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 76.2-MM MOUNTAIN GUN |
| GERMAN NOMENCLATURE: 7.62-cm Sprgr. 284/4 (r) (See fig. 408.) |
| WEAPONS: (German nomenclature original model): |
|
Russian Mountain Gun: 7.62-cm Geb.K 307 (r) – russ 38. |
| PROJECTILE: |
|
Caliber: 76.2 mm. |
|
Kind: Projectile. |
|
Type: H.E. |
|
Weight (loaded and fuzes): 13½ pounds. |
|
Color: O.D. with black markings. |
| CHARGE: |
|
Number: T. |
|
Weight: 1½ pounds. |
|
Kind: TNT. |
| TRACER: None. |
| BOOSTER: Integral with fuze. |
| FUZE: |
|
Nomenclature: A.Z. 368 (r) (Russian – KTM –1). |
|
Type: P.D. |
| REMARKS: |
| Note 1. – Shell has second bourrelet just forward of rotating band. |

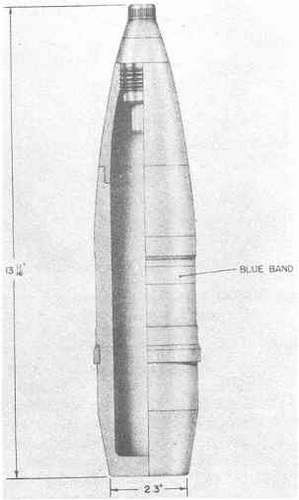

Figure 408 – H.E. Projectile,
Type 284 Russian,
76.2-mm, |
|
 |
