| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 75-MM GUN |
| GERMAN NOMENCLATURE: 7.5-cm Sprgr. 230/1 (f) (French 1900). (See fig. 407.) |
| WEAPONS: |
|
French Field Gun: 7.5-cm F.K. 231 (f), 232 (f) Model 97, 97/33. |
|
Belgian Field Gun: 7.5-cm F.K. 234 (b), Model G.P. II. |
|
Belgian Field Gun: 7.5-cm F.K. 236 (b), Model 16 G.P. III. |
|
German Antitank Gun: 7.5-cm Pak 97/38. |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Projectile. |
|
Type: H.E. |
|
Weight (loaded and fuzed): 12 pounds. |
|
Color: Yellow with black markings. |
| CHARGE: |
|
Number: M. |
|
Weight: 1½ pounds. |
|
Kind: Melinite. |
| TRACER: None. |
| BOOSTER: Integral with fuze. |
| FUZE: |
|
Nomenclature |
|
German |
French |
| (1) | A.Z. 229 (f) o.V. | frz 24/31 Schn 16 B SR |
| (2) | A.Z. 235 (f) | frz 24/31 99 |
| (3) | A.Z. 237 (f) | frz 24/31 99/08 |
| (4) | A.Z. 245 (f) | frz 24/31 TCAL 17 |
| (5) | A.Z. 247 (f) | frz 24/31 TCAL 18 |
| (6) | A.Z. 251 (f) o.V. | frz 24/31 RYG 18 J |
| (7) | A.Z. 253 (f) kz.V. | frz 24/31 RYG 18 CR |
| (8) | A.Z. 259 (f) o.V. (m. verst. F.) | frz 24/31 RY 17 SR (a.r.r.) |
| (9) | A.Z. 261 (f) | frz 24/31 JAL 16 |
| (10) | A.Z. 277 (f) kz.V. | frz 24/31 TACL 26 CR |
| (11) | A.Z. 281 (f) o.V. | frz 24/31 TACL 26 3 |
| (12) | Zt.Z. 415 (f) | frz 24/31 15 |
| (13) | Zt.Z. 416 (f) | frz 24/31 A 16 |
| (14) | Dopp.Z. 488 (f) | frz 24/31 6 |
| (15) | Dopp.Z. 449 (f) | frz 24/31 A 18 |
Type: |
| (1) | P.D. | (9) | P.D. |
| (2) | P.D. | (10) | P.D. |
| (3) | P.D. | (11) | P.D. |
| (4) | P.D. | (12) | Time |
| (5) | P.D. | (13) | Time |
| (6) | P.D. | (14) | T. & P. |
| (7) | P.D. | (15) | T. & P. |
| (8) | P.D. |

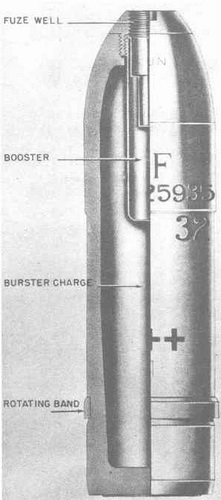

Figure 407 – H.E. Projectile, 75-mm, 7.5-cm Sprgr. 230/1 (f) (French 1900) |
|
 |
