| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 75-MM GUN |
| GERMAN NOMENCLATURE: 7.5-cm Sprgr. 240/2 (b). (See fig. 402.) |
| WEAPONS: Belgian Field Gun: 7.5-cm F.K. 235 (b) belg 06 TR |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Projectile. |
|
Type: H.E. |
|
Weight (loaded and fuzed): 12 pounds. |
|
Color: Yellow with black band above rotating band. |
| CHARGE: |
|
Number: None. |
|
Weight: 2¼ pounds. |
|
Kind: Unknown. |
| TRACER: None. |
| BOOSTER: Integral with fuze. |
| FUZE: |
|
Nomenclature: Unknown. |
|
Type: Unknown. |
| REMARKS: |
|
Note 1. – This projectile was not fitted with a fuze but from the adapter it appears that French fuzes of the 24/31 series may be used. |

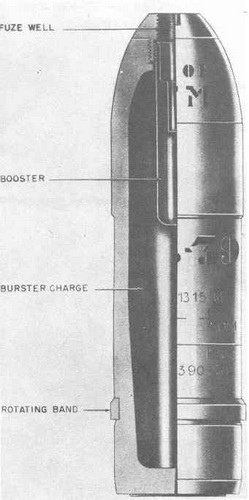

Figure 402 – H.E. Projectile, 75-mm, 7.5-cm Sprgr. 240/2 (b) |
|
 |
