| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 75-MM FIELD GUN |
| GERMAN NOMENCLATURE: K.Gr.rot FES (See fig. 392.) |
| WEAPONS: German Field Gun: 7.5-cm F.K. 38. |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 12¾ pounds (loaded and fuzed) |
|
Color: O.D. with red band above rotating band. |
| CHARGE: |
|
Number: 1b. |
|
Weight: ¾ pound. |
|
Kind: TNT pressend in blocks in cardboard container packed with montan wax in an me-tal container. |
| TRACER: None. |
| BOOSTER: gr.Zdlg. C/98 Np. |
| FUZE: |
|
Nomenclature: A.Z. 23. |
|
Type: P.D. |

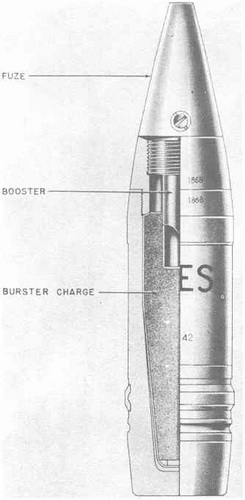

Figure 392 – H.E. Shell for 75-mm Field Gun, 7.5-cm K.Gr.rot FES |
|
 |
