| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 75-MM HOWITZER |
| GERMAN NOMENCLATURE: 7.5-cm Jgr. 18 FES (See fig. 389.) |
| WEAPONS: |
|
German Light Infantry Howitzer: 7.5-cm le.J.G. 18. |
|
German Light Mountain Infantry Howitzer: 7.5-cm le.Geb.J.G. 18. |
| PROJECTILE: |
|
Caliber: 75 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 12.03 pounds with fuze l.Jgr.Z. 23 n.A. (loaded and fuzed) 13.23. pounds, with fuze l.Jgr.Z. 23. |
|
Color: O.D. |
| CHARGE: |
|
Number: 14. |
|
Weight: 1.25 pounds. |
|
Kind: TNT poured. |
| BOOSTER: wlf. Np. 10. |
| FUZE: |
|
Nomenclature: l.Jgr.Z. 23 n.A.; l.Jgr.Z. 23. |
|
Type: P.D. |

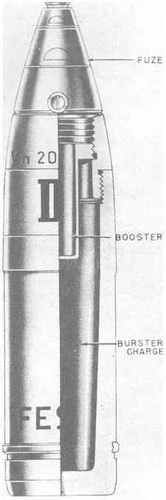

Figure 389 – H.E. Shell for 75-mm Field Gun, 7.5-cm K.Gr.rot FES |
|
 |
