GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
CHAPTER 5 |
GERMAN PROJECTILES |
H.E. PROJECTILE FOR MOUNTAIN GUN, 75-MM |
GERMAN NOMENCLATURE: Geb.Gr. 15 Al. (Gebirgsgranate 15 Aluminium). (See fig. 377.) |
EMPLOYMENT: 7.5-cm Geb.K. 15 (Gebirgskanone 15) Mountain Gun 15. |
COMPLETE ROUND: 15.75 inches, over-all length. |
PROJECTILE, painted green: |
12.99 inches, over-all length, w/fuze. |
0.687 inch, distance from base to band. |
0.433 inch, width of rotating band. |
2.95 inches, diameter of base. |
12.0 pounds, total weight. |
TNT/Aluminum, 90/10 and red phosphorus smoke box bursting charge. |
C/98 Np. Booster. |
CARTRIDGE CASE (German nomenclature, 6335) (semifixed): |
5.078 inches, over-all length. |
3.03 inches, diameter of neck. |
No shoulder. |
3.34 inches, diameter or rim. |
11.6 ounces, flaked nitroglycerine and nitrocellulose with nitroguanadine. |
C/12 n.A. primer. |
FUZE: Nose percussion fuze A.Z. 23 Geb. Time and percussion fuze Dopp.Z. S/60 Geb. |
PACKAGING: Three projectiles and three cartridges in a wicker basket. |
REMARKS: There is round designated: "Geb.Gr. 15 rot" which is identical with the above except that it does not contain any aluminum. |

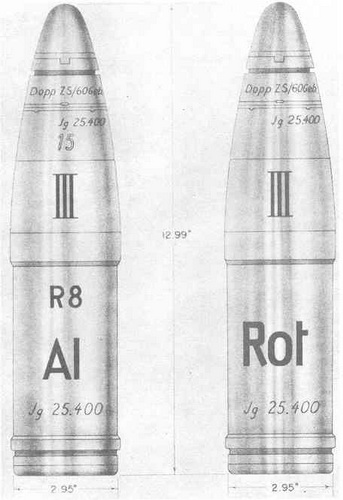

Figure 377 H.E. Projectile for Mountain Gun, 75-mm Geb.Gr. 15 Al. |
|
