| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| A.P. PROJECTILE WITHOUT CAP FOR TANK GUN, 50-MM |
| GERMAN NOMENCLATURE: |
|
5-cm Pzgr.Patr. KwK. (Panzergranatpatrone Kampfwagenkanone). (See fig. 366.) |
| EMPLOYMENT: |
|
5-cm KwK. (Kampfwagenkanone) tank gun. |
| COMPLETE ROUND: |
|
16.357 inches, over-all length. |
|
7 pounds 10 ounces, total weight. |
| PROJECTILE, painted black: |
|
7,5 cm inches, over-all length. |
|
1.156 inches, distance from base to band. |
|
1.963 inches, diameter of bourrelet. |
|
1.938 inches, diameter of base. |
|
0.406 inch, widht of rotating band – soft iron. |
|
4 pounds 8.25 ounces, total weight. |
|
0.58 ounce, PETN/Wax bursting charge. |
|
Tracer present in fuze. |
|
Stamped in base: "164 DL 608 1940, C FES." |
| CARTRIDGE CASE (German nomenclature, 6317) (fixed): |
|
11.342 inches, over-all length. |
|
2.035 inches, diameter of neck. |
|
2.668 inches, diameter of shoulder. |
|
3.085 inches, diameter of base. |
|
1 pound 12.76 ounces, weight of case. |
|
Diglycol propellant. C/22 primer. |
| FUZE: Base detonaiting fuze – Bd.Z. 5103. There are no markuings on this fuze. |

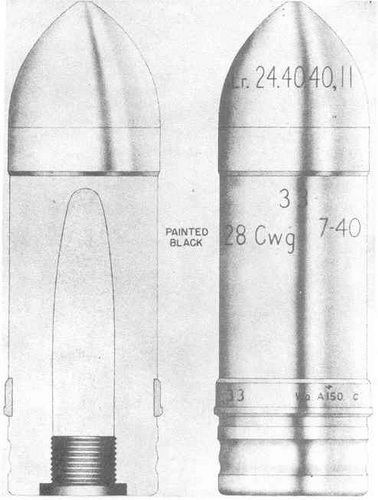

Figure 366 – A.P. Projectile
without Cap for Tank Gun,
50-mm, |
|
 |
