| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE TYPE 36 (CZECH DESIGN), 47-MM |
| GERMAN NOMENCLATURE: 4.7-cm Sprgr.Patr. 36 (t) Sprenggranatpatrone 36 [t]). (See fig. 362.) |
| EMPLOYMENT: |
|
4.7 cm Pak (t) (Panzerabwehrkanone [t]). |
|
4.7 cm K 36 (t) (Kanone 36 [t]). |
| COMPLETE ROUND: |
|
22.44 inches, over-all length. |
|
6.25 pounds, total weight. |
| PROJECTILE: |
|
7.36 inches, over-all length w/o fuze. |
|
1.84 inches, diameter of bourrelet. |
|
0.67 inch, width of rotating band. |
|
1.625 inches, diameter of base. |
|
3.3 pounds, total weight. |
|
6.348 ounces, weight of bursting charge. |
|
TNT, type of bursting charge. |
| CARTRIDGE CASE (German nomenclature, M 36): |
|
15.944 inches, over-all length. |
|
1.98 inches, diameter of neck. |
|
2.12 inches, diameter of shoulder. |
|
2.52 inches, depth of extracting groove. |
|
1 pound 15.35 ounces, weight of propellant. |
|
Strip nitroclycerine and nitrocellulose – type of propellant. |
| FUZE: Czech time or S/D. |

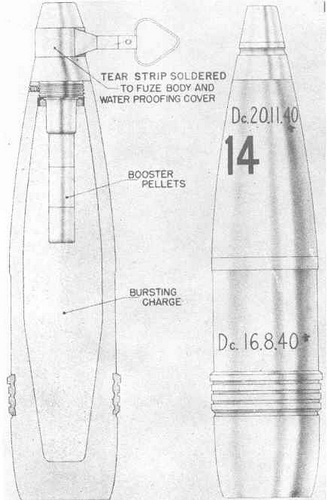

Figure 362 – H.E. Projectile
Type 36 (Czech. Design) 47-mm, |
|
 |
