| A.P. PROJECTILE WITHOUT CAP FOR A.T. GUN, 37-MM |
| GERMAN NOMENCLATURE: 3.7-cm Pzgr.Patr. (Panzergranatpatrone). (See fig. 357.) |
| EMPLOYMENT: 3.7 cm Pak (Panzerabwehrkanone). |
| COMPLETE ROUND: 13.27 inches, over-all length. |
|
2.9 pounds, total weight. |
| PROJECTILE painted black: |
|
3.897 inches, over-all length. |
|
1.447 inches, diameter of bourrelet. |
|
1.502 inches, diameter of copper rotating band. |
|
0.437 inch, diameter of base. |
|
0.562 inch, base to band. |
|
1.5 pounds, total weight. |
|
0.46 ounce, weight of bursting charge. |
|
PETN/Wax (82/18), type of bursting charge. |
|
Tracer present. |
|
Stencild in red: "Co. 7.741 F Tp 33 11 Cw.G. 1.40." Stamped on base: "G251 DL 603 1939 C." |
| CARTRIDGE CASE (German nomenclature, 6331): |
|
9.75 inches, over-all length. |
|
1.5 inches, diameter of neck. |
|
2.0 inches, depth of extracting groove. |
|
6.66 ounces, weight of propellant. |
|
Digl.R.P. or 177 gm Ngl.R.P. (tubular diethylene glycoldinitrate and nitrocellulose) or (tu-bular nitroglycerine and nitrocellulose), type of propellant. |
|
C/13 n.A. primer. |
| FUZE: 5103. |

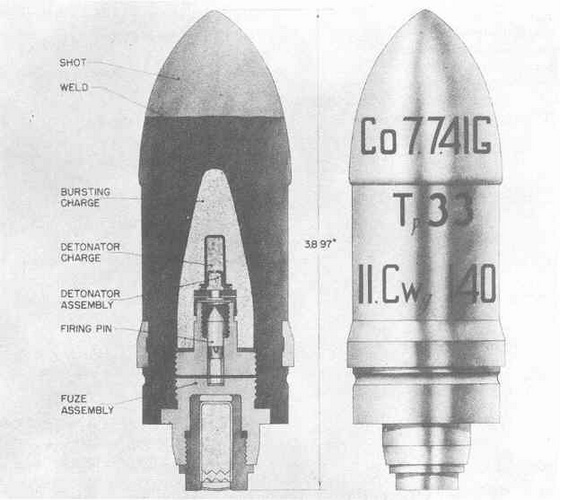

Figure 357 – A.P. Projectile ´without
Cap for A.T. Gun, 37-mm, |
|
|
 |
