| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR A.A. GUN, 37-MM |
|
GERMAN NOMENCLATURE: 3.7-cm Sprgr.Patr. 18 (Sprenggranatpatrone 18). (See fig. 355.) |
| EMPLOYMENT: 3.7-cm Flak 18 (Flugabwehrkanone 18). |
| COMPLETE ROUND (C/R is identifical for both weapons: |
|
13.779 inches, over-all length. |
|
3.32 ounes, total weight. |
| PROJECTILE, painted yellow; two deep cannelures below rotating band: |
|
5.0 inches, over-all length. |
|
1.469 inches, diameter of bourrelet. |
|
0.375 inch, width of rotating band. |
|
Two, number of rotating bands. |
|
1.437 inches, diameter of base. |
|
1.0 inch, base to band. |
|
21.943 ounces, total weight. |
|
0.856 ounce, weight of bursting charge. |
|
PETN/Wax, type of bursting charge. |
|
Tracer is present. |
| CARTRIDGE CASE (German nomenclature, 6348): |
|
10.156 inches, over-all length. |
|
1.594 inches, diameter of neck. |
|
1.625 inches, diameter of shoulder. |
|
1.844 inches, depth of extracting groove. |
|
6.7 ounces, weight of propellant. |
|
Ngl.R.P. (tubular nitroglycerine and nitrocellulose) type of propellant. |
|
C/13 n.A. primer. |
| FUZE: 3.7-cm Kopf.Z.Zerl.P. or 3.7 cm Kopf.Z.Zerl.Fg. |

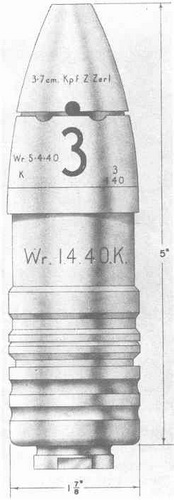

Figure 355 – H.E. Projectile for A.A. Gun, 37-mm, 3.7-cm Sprgr.Patr. 18 |
|
 |
