| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. MORTAR PROJECTILE, 50-MM |
| GERMAN NOMENCLATURE: 5-cm Wgr. 36. (See fig. 542) |
| EMPLOYMENT: 5-cm le.Gr.W. 36. |
| PROJECTILE (painted dull red): |
|
8.625 inches, over-all length. |
|
4.25 inches, length of body. |
|
1.312 inches, diameter of bourrelet. |
|
1.0 inch, width of bourrelet. |
|
0.937 inch. diameter of base. |
|
2.2 pounds, total weight. |
|
Eight, number of fins. |
|
112 grams TNT, type of burstin charge. |
|
kz.Zdlg. 34 Np. booster |
| CARTRIDGE CASE: |
|
4 grams or powder, type of propellant. One charge only in firing cartridge. |
| FUZE: Wgr.Z. 38 |
| REMARKS: |
| Ten rounds in metal container, 12.5 kg. |
|

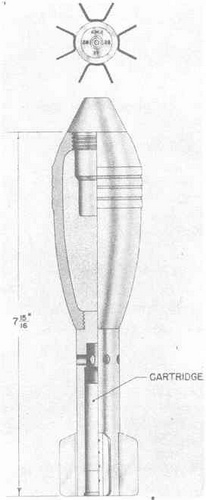

Figure 542 – H.E. Mortar Projectile, 50-mm, 5-cm H.E. Bomb |
|
|
 |
