| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 240-MM GUN |
| GERMAN NOMENCLATURE: 24-cm Sprgr. L/4.2 m.
Hb. (See fig. 534.) [24-cm Sprgr. L/4.2 Bdz u. Kz (m. Hb)] |
| PROJECTILE: |
|
Caliber: 240 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 326 pounds (loaded and fuzed) |
|
Color: Dark O.D. |
| CHARGE: |
|
Number: 1. |
|
Weight: 36 pounds. |
|
Kind: TNT pressed in blocks in cardboard containers. |
| TRACER: None. |
| BOOSTER: 4 seperate boosters: 1 - Zdlg. A; 3 - l.Zdlg. A. |
| FUZE: |
|
Nomenclature: (1) Kz. C/27 Lm. (2) Kz. C/27 St. (3) Kz. C/27 Ms. (4) M.Dopp.Z. S/60 (5) Bdz C/38. |
| TYPE: (1) P.D. (2) P.D. (3) P.D. (4) T. and P. (5) Base. |
|

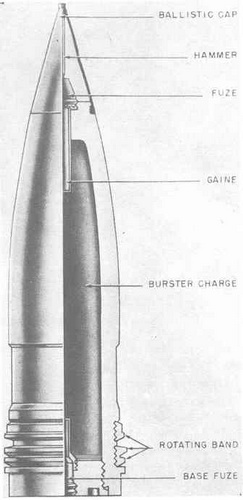

Figure 534 – H.E. Shell for 240-mm Gun, 24-cm Sprgr. L/4.2 m.Hb. |
|
|
 |
