| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| SEMI-ARMOR-PIERCING PROJECTILE FOR 203-MM GERMAN RAILWAY GUN |
| GERMAN NOMENCLATURE: 20.3-cm Sprgr. L/4.7 Bd.Z. m. Hb. (See fig. 529.) |
| WEAPONS: German Railway Gun: 20-cm K. (E). |
| PROJECTILE: |
|
Caliber: 203 mm. |
|
Kind: Shell. |
|
Type: S.A.P. |
|
Weight: 270 pounds (loaded and fuzed). |
|
Color: Dark O.D. |
| CHARGE: |
|
Number: 1. |
|
Weight: 11¼ pounds. |
|
Kind: TNT pressed in blocks in cardboard container packed with magnesium putty. |
| TRACER: None. |
| BOOSTER: Zdlg. B. |
| FUZE: |
|
Nomenclature: Bd.Z. C/38. |
|
Type: B.D. |
| REMARKS: |
|
Note 1. – This projectile has a magnesium-aluminum alloy ballistic cap, which provides a spotting flash upon impact. |
|

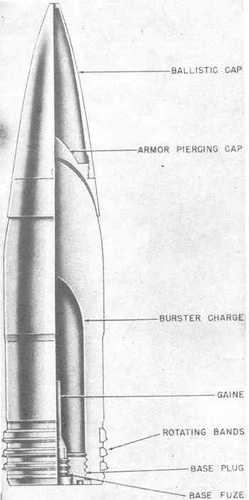

Figure 529 – S.A.P. Projectile for 203-mm Railway
Gun, |
|
|
 |
