| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| S.A.P. PROJECTILE FOR GUN 39, 150-MM |
| GERMAN NOMENCLATURE: 15-cm Hpzgr. (Halbpanzergranate). (See fig. 508.) |
| EMPLOYMENT: 15-cm K. 39 (Kanone 39) Gun 39. |
| PROJECTILE (black tip): |
|
23.53 inches, over-all length. |
|
5.877 inches, diameter at bourrelet. |
|
6.102 inches, diameter of base. |
|
99.0 pounds, total weight. |
| CARTRIDGE CASE (German nomenclature 6318 [semi-fixed]): |
|
20.66 inches, over-all length. |
|
No shoulder. |
|
7.28 inches, diameter of base. |
|
C/12 n.A. primer. |
| FUZE: Base detonating type. |
| REMARKS: Information is from captured documents. |
|

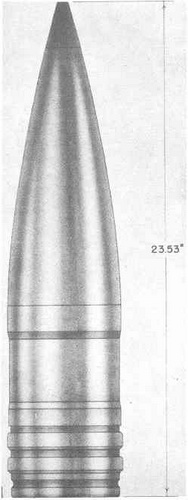

Figure 508 – S.A.P. Projectile for Gun 39, 150-mm, 15-cm Hpzgr. |
|
|
 |
