| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR CZECH 150-MM HOWITZER |
| GERMAN NOMENCLATURE: 15-cm A.Z.Gr. 37 (t). (See fig. 484.) |
| WEAPONS: Czech Medium Howitzer: s.F.H. 25 (f) Model 25. |
| PROJECTILE: |
|
Caliber: 150 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 92.3 pounds (loaded and fuzed). |
|
Color: machined metal with red band around body. [deutsche Kennzeichnung: grau mit schwarzer Beschriftung] |
| CHARGE: |
|
Number: TP |
|
Weight: 13.8 pounds. |
|
Kind: Pressed TNT. |
| TRACER: None. |
| BOOSTER: Integral with fuze with bore safety device. |
| FUZE: |
|
Nomenclature: (1) AZ-CHZR (t); (2) AZ-SKHZR (t) |
|
Type: (1) P.D.; (2) P.D. |
|

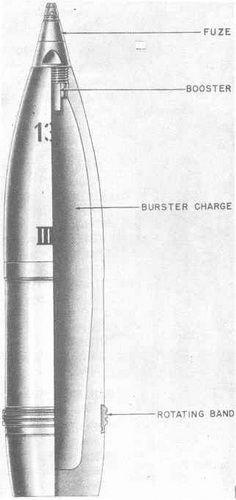

Figure 484 – H.E. Projectile for Czech 150-mm Howitzer, 15-cm A.Z.Gr. 37 (t) |
|
|
 |
