| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR FOR LONG DISTANCE USE IN FIELD HOWITZER, 105-MM |
| GERMAN NOMENCLATURE: 10-cm F.H.Gr. F.
(Feldhaubitzgranate Fern). (See fig. 470.) |
| EMPLOYMENT: |
|
l.F.H. 18 M (leichte Feldhaubitze 18 Mündungsbremse) Light Field Howitzer 18 Muzzle Brake. |
| COMPLETE ROUND: |
|
24.233 inches, over-all length. |
| PROJECTILE, painted green: |
|
20.47 inches, over-all length w/fuze. |
|
16.77 inches, over-all length w/o fuze. |
|
2.362 inches, distance from base to band. |
|
0.59 inches, width of rotating band. |
|
32.58 pounds, total weight. |
|
Amatol, type of bursting charge. |
| CARTRIDGE CASE (German nomenclature 6342): |
|
6.125 inches, over-all length. |
|
4.375 inches, diameter of neck. |
|
4.5 inches, diameter of shoulder. |
|
4.937 inches, diameter at base. |
|
3.4 pounds, weight of propellant. |
|
Gudol, type of propellant. |
| FUZE: Nose percussion fuze – A.Z. 23 (0.15) or. |
|
Time and percussion fuze – Dopp.Z. S/60 Fl. |
|
REMARKS: l.F.H. 18 M uses same projectiles, charges, and cartridge cases as the l.F.H. 18 with the above addition. |
|

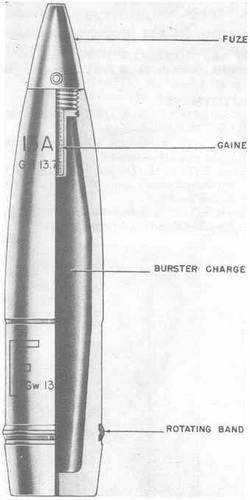

Figure 470 – H.E. Projectile for Long Distance Use
in Field Howitzer, 105-mm, |
|
|
 |
