| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| A.P. PROJECTILE WITH TUNGSTEN CARBIDE CORE, 76.2-MM |
| GERMAN NOMENCLATURE: Pzgr.Patr. 40 (r) (Panzergranatpatrone 40 [russ]). (See fig. 410.) |
| EMPLOYMENT: |
|
7.62-cm F.K. 296 (r) (Feldkanone 296 [russ]) Field Gun 296 (Russian). |
|
7.62-cm F.K. 36 (r) (Feldkanone 36 [russ]) Field Gun 36 (Russian). |
|
7-62-cm Pak 36 (r) (Panzerabwehrkanone 36 (russ)) Antitank Gun 36 (Russian). |
| COMPLETE ROUND (description of c/r is for projectile in Russian cartridge case): |
|
24.28 inches, over-all length. |
|
14.74 pounds, total weight. |
| PROJECTILE, painted black: |
|
10.157 inches, over-all length. |
|
1.0 inches, distance from base to band. |
|
0.687 inch, width of rotating band. |
|
2.91 inches, diameter of base. |
|
9.13 pounds, total weight. |
|
4.344 inches, length of tungsten carbide core. |
|
1.125 inches, diameter of core. |
|
4.921 inches, length of ballistic cap. |
|
Tracer present in base of projectile. |
|
Stamped on body: |
"41 |
CYW |
| COB" |
| CARTRIDGE CASE: (German and Russian nomenclature, 42m or 37r (fixed): |
|
15.125 inches, over-all length. |
|
3.07 inches, diameter of neck. |
|
3.062 inches, diameter of shoulder. |
|
3.531 inches, diameter of base. |
|
364.0 grams, tubular Diglykol propellant. |
|
42/m or 33 primer. |
| FUZE: No fuze is employed. |
|
PACKAGING: Either five rounds to a box – 110 pounds or six rounds to a box – 145 pounds. |
|
REMARKS: There is a bakelite sheath forward of the core, and a setscrew forward of the bourrelet. This German projectile may be found (fixed) in the German case 6340 for use in captured weapons which the Germans have rebored. |

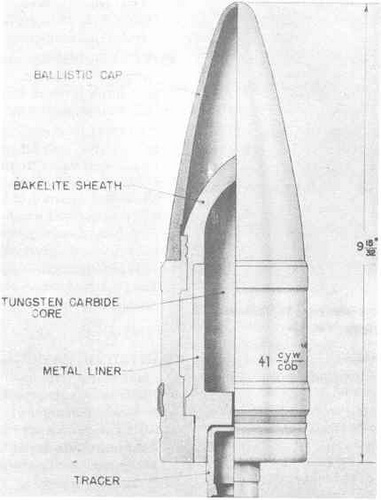

Figure 410 – A.P. Projectile
With Tungsten Carbide Core, 76.2-mm, |
|
 |
