| GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
| CHAPTER 5 |
| GERMAN PROJECTILES |
| H.E. PROJECTILE FOR 75-MM MOUNTAIN GUN |
| GERMAN NOMENCLATURE: K.Gr.rot Al. Dopp.Z. (See fig. 394.) |
| WEAPONS: German Mountain Gun, Geb.G. 36. |
| PROKECTILE: |
|
Caliber: 75 mm. |
|
Kind: Shell. |
|
Type: H.E. |
|
Weight: 13¼ pounds (loaded and fuzed). |
|
Color: O.D. with red and yellow bands around body. |
| CHARGE: |
|
Number: 15. |
|
Weight: 1¼ pounds. |
|
Kind: TNT/Aluminum powder (90/10) poured. |
| TRACER: None. |
| BOOSTER: gr.Zdlg. C/98 Nitropenta. |
| FUZE: Dopp.Z. S/60 s. |
|
Type: T. and P. |
| REMARKS: |
| Note 1. – R S smoke box contained in shell. |
| Note 2. – KPS rotating band. |

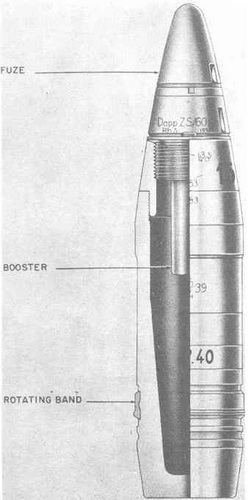

Figure 394 – H.E. Shell for 75-mm Mountain Gun, 7.5 cm K.Gr.rot Al. Dopp.Z. |
|
 |
