GERMAN PROJECTILES |
A.P. PROJECTILE WITH TUNGSTEN CARBIDE CORE (ARROWHEAD), 50-MM |
GERMAN NOMENCLATURE: 5-cm Pzgr.Patr. 40 KwK (Panzergranatpatrone 40, Kampfwa-genkanone). (See fig. 344.) |
EMPLOYMENT: 5-cm KwK Kampfwagenkanone Tank Gun. |
5-cm KwK 39 Kampfwagenkanone 39 Tank Gun 39. |
5-cm Pak 38 Panzerabwehrkanone 38 Antitank Gun 38. |
COMPLETE ROUND: Descripton of c/r for 5-cm KwK. 14.48 inches, over-all length. 5 pounds 3 ounces, total weight. |
PROJECTILE painted black: |
5.75 inches, overl-all. |
length w/tracer. |
1.95 inches, diameter of bourrelet. |
2.269 inches, diameter of rotating band. |
0.5 inch, width of rotating band. |
1.258 inches, diameter of body midway. |
1.95 pounds, total weight. |
2.937 inches, length of tungsten carbide core. |
0.81 inch, diameter of core. |
0.74 pound, weight of core |
Tracer in cup at base. |
CARTRIDGE CASE (German nomenclature, 6317 (fixed)): |
11.342 inches, over-all length. |
2.035 inches, diameter of neck. |
2.668 inches, diameter of shoulder. |
3.085 inches, diameter of base. |
1.87 pounds, weight of case. |
1.2 pounds, tubular diglykol propellant. |
C/22 31 grain electric primer. |
FUZE: No fuze is employed. |
REMARKS: Cartridge cases for other weapons are as follow: Pak 38 6360 (fixed); |
KwK 39 6360 (fixed). |

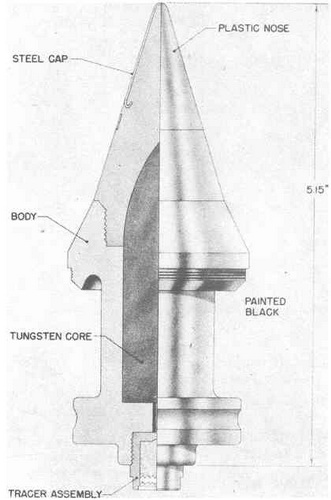

Figure 344 A.P. Projectile with Tungsten Carbide Core (Arrowhead), 50-mm |
|
