GERMAN EXPLOSIVE ORDNANCE - PROJECTILES AND PROJECTILE FUZES |
CHAPTER 5 |
GERMAN PROJECTILES |
H.E. PROJECTILE FOR TAPERED BORE GUN, 28.20-MM |
GERMAN NOMENCLATURE: Sprgr.Patr. Pz.B. 41 (Sprenggranatpatrone Panzerbüchse 41). (See fig. 338.) |
EMPLOYMENT: s.Pz.B. 41 (schwere Panzerbüchse 41) Gerlich type tapered bore gun. |
COMPLETE ROUND: 8.5 inches, over-all length. |
PROJECTILE, painted black: |
2.531 inches, over-all lenght. |
1.129 inches, diameter of bourrelet. |
0.752 inch, diameter of body midway. |
1.128 inches, diameter of base. |
3.1 ounces, total weight. |
1.8 ounces, weight of bursting charge. |
PETN/Wax, type of bursting charge. |
Tracer present. |
CARTRIDGE CASE (German nomenclature, P 345): |
7.375 inches, over-all lenght. |
1.175 inches, diameter of neck. |
1.567 inches, diameter of shoulder. |
1.885 inches, depth of extracting groove. |
5.3 ounces, weight of propellant. |
Nz.R.P. (tubular nitrocellulose) type of propellant. |
C/13 n.A. primer. |
FUZE: A.Z. 5072. |

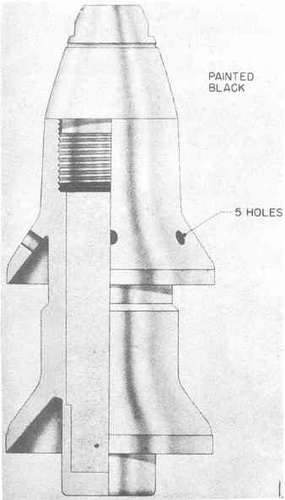

Figure 338 H.E. Projectile
for Tapered Bore Gun, |
|
