DESCRIPTION. This grenade consists of a projectile having the appearance of a minia-ture mortar shell and a brass cartridge case. The two parts are crimped together. (See fig. 311.)

The grenade itself is constructed in two parts: The nose cap and the body. The nose cap is rounded and screws into the body of the grenade. Within the body is a case con-taining the detonator and main filling. Between the case and the fixed firing pin in the nose cap is a creep spring. The case is prevented from moving forward before firing by two metal balls fitting into a hole in the base of the carrier and resting in grooves in a platform in the body. An arming rod fits between the balls holding them out.

On the base are four fins which have the same diameter as the body. Contained in the cartridge case which fits over the after part of the grenade is about 0.1 ounce of rifle powder.

OPERATION. On firing, the arming rod will be forced out of the base by set-back. This will happen after 10 to 12 yards of flight and the grenade is then armed. When the rod falls out, the balls will move in and the case is free to move forward except for the creep spring. On impact, the case moves forward and the detonator moves onto the fixed firing pin thus exploding the grenade.

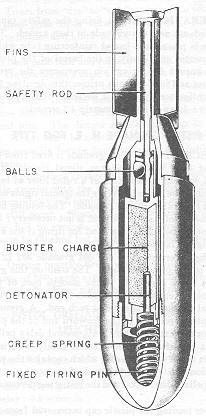

Figure 311 – 26-mm Pistol Grenade
