DESCRIPTION. This igniter, resembling the Z.Z. 42, consists of a steel case screw-threaded to accept an adapter bush in which is secured an igniter cap. The adapter is screw-threaded to screw into the mine. A spring-loaded striker, accommodated in the case, is assembled so that the striker spindle protrudes through the upper end of the case. The striker is retained in the cocked position by two winged detents, the jaw of which engages in recesses machined in the striker spindle. The detents are maintained in this position by a retaining collar, mounted on the case, with which the detents engage. They are secured against displacement by a safety pin through a hole drilled in each de-tent. (See fig. 261.)

OPERATION. The igniter is armed after withdrawal of the safety pin. After arming, a pressure of 21 pounds or pull of 14 pounds on the wings open them sufficiently to release the striker. The striker, driven by the striker spring, impinges upon the percussion cap and fires the mine.

EMPLOYMENT. This igniter was developed for use with the S-Mine 44 and improvised mines. Mines fitted with the S.Mi.Z 44 are normally buried with only the wings of the ig-niter showing. In winter, however, the whole head of the igniter must be above ground.

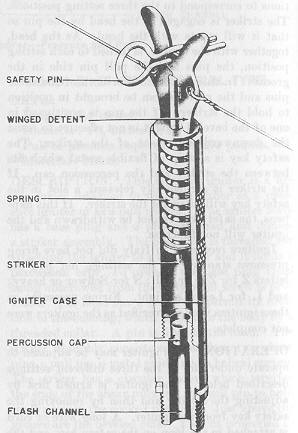

Figure 261 – S.Mi.Z. 44 Igniter – Pressure and Pull
