Prototype. This grenade consists of a body which is the head of the smoke hand grenade 39 into which the B.Z.E. igniter is fitted by means of an adapter made of some synthetic resin. The adapter is threaded externally to screw into the neck of the grenade body and internally to receive the igniter. The closed end of the ignition tube is painted green. Nb.Hgr. 39 is stenciled in white over broken white band around the body. It has eight smoke emission holes of the Model 39.

Model 41. This grenade is of the same construction as the Nebelhandgranate 39 and the Nebelhandgranate 41 prototype. However, the body has been modified so that in order to take the B.Z.E. igniter an adapter is not necessary. A dished plate with a small central neck in the top replaces the old wide screw neck plate which required the adapter. There are only two smoke emission holes. The letters Nb.Hgr. 41 and a broken line are stenciled in white on the grenade body. (See fig. 291.)

OPERATION. The igniter and adapter are removed from the grenade body. The N4 igni-tion tube is inserted, painted end first, into the central channel of the grenade head. The adapter and igniter are then replaced. The blue painted cap in the igniter is unscrewed and pulled. This functions the igniter. The grenade is the thrown and after the 4 1/2 se-cond delay has elapsed, smoke is emitted through the emission holes for 2 minutes. Be-cause of the short duration of the smoke, this grenade is used when accuracy in placing a small screen in most important, such as screening machine gun nests and pill-boxes.

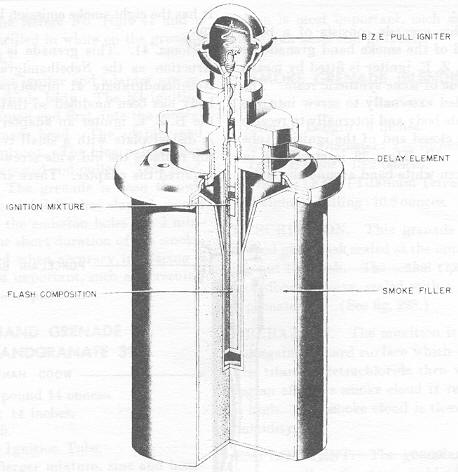

Figure 291 – Type 41 Smoke Hand Grenade
